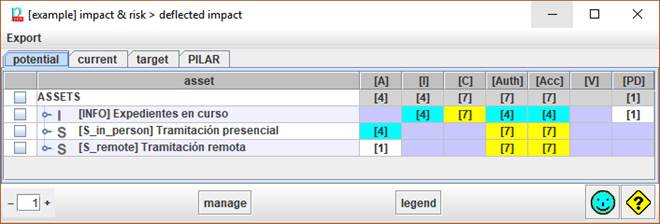

PILAR presents the deflected impact on assets with an explicit value:

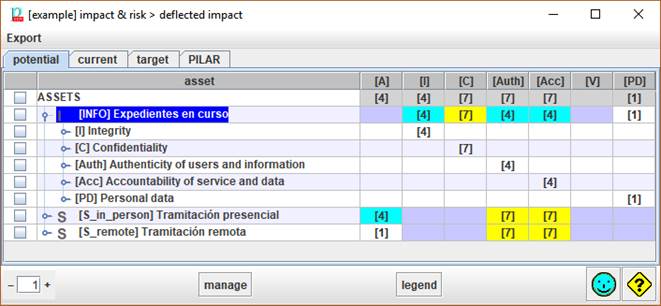

You may expand the tree to split each dimension apart

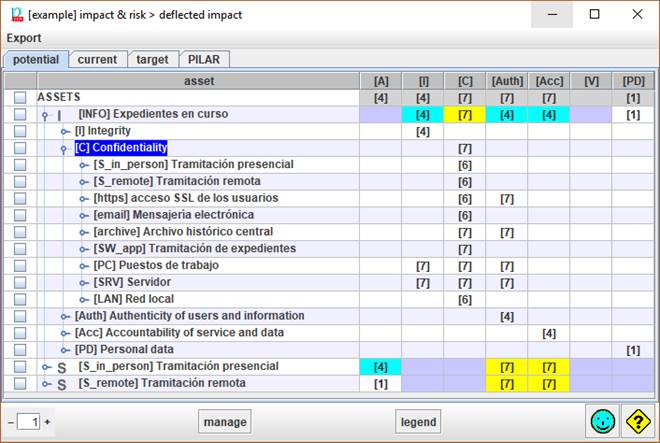

You may further expand the tree to inspect how each dimension is affected on assets below:

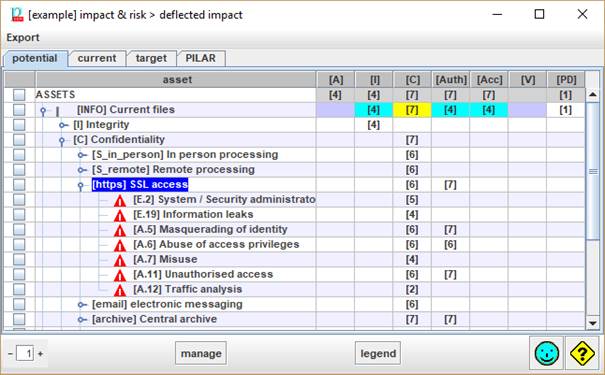

And so on, down to the level of single threats:
One tab per project phase. Click to switch.
Pseudo phase “potential” shows inherent impact without safeguards
Top menu EXPORT
|
html |
Exports selected rows to an html file for the web. |
|
csv |
Exports selected rows to a csv file for excel. |
|
xml |
Exports values to an xml file. |
|
db |
Exports values to a database. Only if the license enables the usage of SQL. |
Table columns
|
1 |
selection |
Click on checkboxes to check / uncheck. SHIFT-click to check a range. Click on column header to clear current selection. Selects rows to manage (see below) |
|
2 |
assets |
Assets tree. 1st level: assets with a value: deflected impact. 2nd level: split down of security dimensions: deflected impact. 3rd level: assets below (in dependency tree): accumulated impact. 4th level: threats impacting the assets: accumulated impact. |
|
3 … |
dimensions |
One column per security dimension. Click on header to switch to alternate view. |
Bottom toolbar
|
|
Spinner to control the expansion of the assets tree. |
|
manage |
For the rows selected in column 1, PILAR collects the risks, and jumps to the safeguard valuation screen, only taking into account the selected risks. |
|
legend |
displays impact levels and colours |
