Assets are presented in layers. Assets cannot be repositioned.

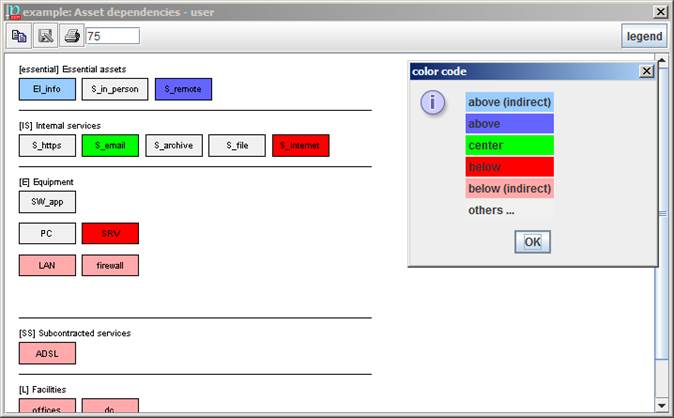

When an asset is selected, the map is coloured:

light blue	the assets indirectly above
strong blue	the assets directly above
green	the selected asset
strong red	the assets directly below
light red	the assets indirectly below
grey	unrelated





To modify the dependencies

While an asset is selected (green) you may go to another asset and click on the right mouse button:

• to add this asset as above the selected one
• to add this asset as below the selected one
• to remove the dependency between this and the selected asset

To discover the dependency route from one asset to another

• select the father (green)
• select the son (right button)
• click on PATH

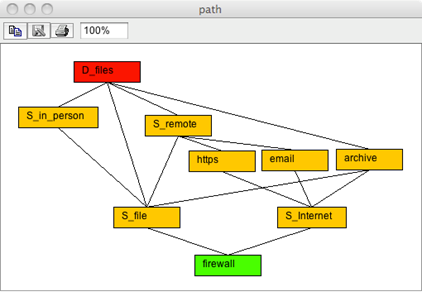

  the picture shows the routes (yellow) from the upper asset (red) to the lower asset (green):





	copy	Copies the image to the note pad to paste it somewhere else.
	save	to store the picture as an image file. The available image formats depend on the hosting machine; some formats are quite widespread: jpg, jpeg, png
	print	to send the picture to a printer
	scale	to enlarge / decrease the image
	legend	show the colour codes
