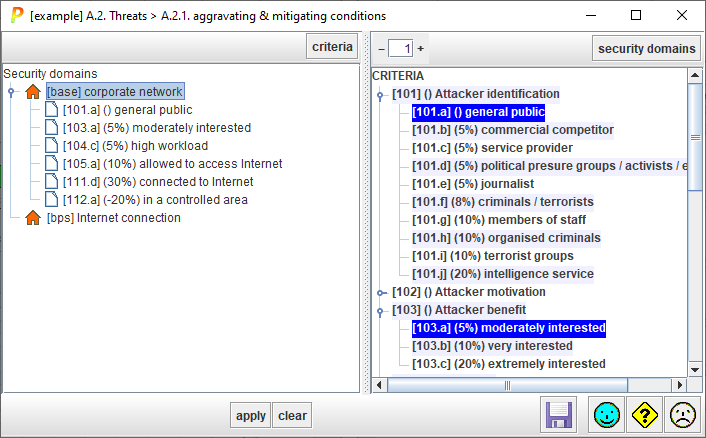

This screen qualifies domains with a few characteristics. The effect is to modify the standard values assigned from threat profile files.


If you modify the associations in this window, please, re-apply the library, or another TSV file (see “[[bcm_tv]]”. TSV is applied automatically if threats are set to automatic (see [[Options / Threats]]).



Top toolbars


criteria

Select one security domain in the left panel ([4]). Click CRITERIA and PILAR will select in the right panel ([5]) the criteria applying to the selected domain.

Control the level of expansion of the criteria tree.

security domains

Select one criterion in the left panel ([5]). Click DOMAINS and PILAR will select the security domains in the right panel ([4]) where the criterion applies.


Bottom toolbar


apply

Select one or more security domains in the left panel ([4]). Select one or more criteria in the right panel ([5]). Click APPLY to associate.

clear

Select one or more security domains in the left panel ([4]). Select one or more criteria in the right panel ([5]). Click CLEAR to dissociate.


Saves current project either in a file, or in database (according to its source).


To associate a criterion to a domain

  • select the domain (left panel)
  • select the criterion (right panel)
  • click APPLY


To remove a criterion association

  • select the criterion (on the left panel)
  • click CLEAR


To discover the criteria associated to a domain

  • select the domain (on the left panel)
  • click criteria (left panel, top)


To discover the domains subject to a vulnerability

  • select the criterion (on the right panel)
  • click DOMAINS (right panel, top)
