Identification

Quick start

Select automatic threats in [[Options / Threats]]

This section explains the behaviour for manual mode. If it is automatic, most options are disabled since PILAR automatically applies the standard values from the TSV file.

NOTE. If [[Options / Threats]] are set to automatic, then some buttons are disabled:

apply and remove
undo / redo
cancel and close

Let us identify which threats are possible for each asset.

Top menu TSV

TSV	See “[[TSV]]”

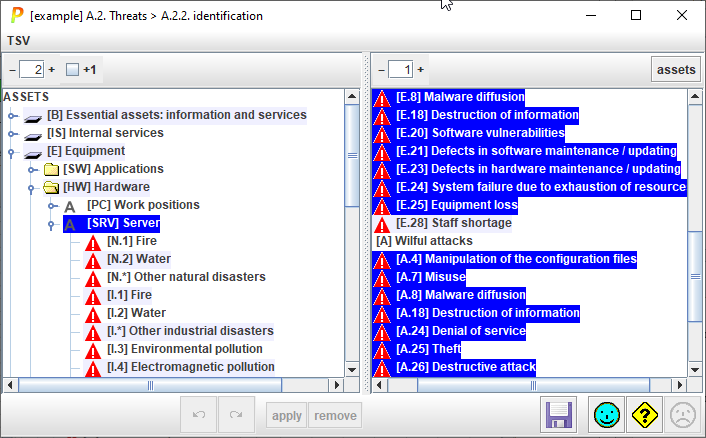

Top toolbar

	Spinner to control the expansion of the assets tree.
+1	Adjust the effect of the spinner [2]. If +1 is checked, PILAR shows the threats associated to an asset. If unchecked, the threats are not expanded.
threats	Select one or more assets in the left panel ([8]). Click THREATS. PILAR selects on the right panel ([9]) the threats that are associated to the selected assets.
	Spinner to control the expansion of the threats tree.
assets	Select one or more threats in the right panel ([9]). Click ASSETS. PILAR selects on the left panel ([8]) the assets that are associated to the selected threats.

Bottom toolbar

	Undo last association of threats to assets.
	Redo last undone association of threats to assets.
apply	Select one or more assets in the left panel ([8]). Select one or more threats in the right panel ([9]). Click APPLY t PILAR associates the selected threats to the selected assets.
remove	Select one or more assets in the left panel ([8]). Select one or more threats in the right panel ([9]). Click REMOVE. PILAR dissociates the selected threats to the selected assets. Or Select one or more threats in the left panel ([8]). Click REMOVE PILAR dissociates the selected threats from the associated assets.
	Saves current project either in a file, or in database (according to its source).

On assets (left panel)

Right click > CURRENT

to select current threats on the right panel

Right click > STANDARD

to select threats on the right panel (those in TSV, but optional ones)

Right click > OPTIONAL

to select threats on the right panel (those in TSV marked as optional)

[[Options / Threats]] are set to automatic.

Some buttons are disabled:

apply and remove
undo / redo
cancel and close

[[Options / Threats]] is set to manual.

Apply and remove buttons are enabled.
TSV is not applied by default

[[Options / Threats]] is set to mix.

Apply and remove buttons are enabled.
TSV is not applied by default

In manual mode and mix modes, you can associate threats to assets freely.

To assign TSV threats to an asset
(or a group, or a layer, or all of them)

select asset(s), group(s), layer(s), or top node
top menu TSV > apply

To assign a threat to an asset

select the asset on the left (one or more)
select the threat on the right (one or more)
click APPLY

To remove a threat from an asset

select the asset on the left (one or more)
select the threat on the right (one or more)
click REMOVE

select the threat on the left (one or more)
click on REMOVE

Which threats are associated to an asset?

select the asset on the left
right click > CURRENT

Which threats are associated to an asset as standard?

select the asset on the left
right click > STANDARD

Which threats are optionally associated to an asset?

select the asset on the left
right click > OPTIONAL

To "copy and paste" threats from an asset onto another

select the source asset on the left
click THREATS to select on the right
select the destination asset on the left (one or more)
click APPLY

Which assets are subject to a threat?

select the threat on the right (one or more)
click ASSETS
