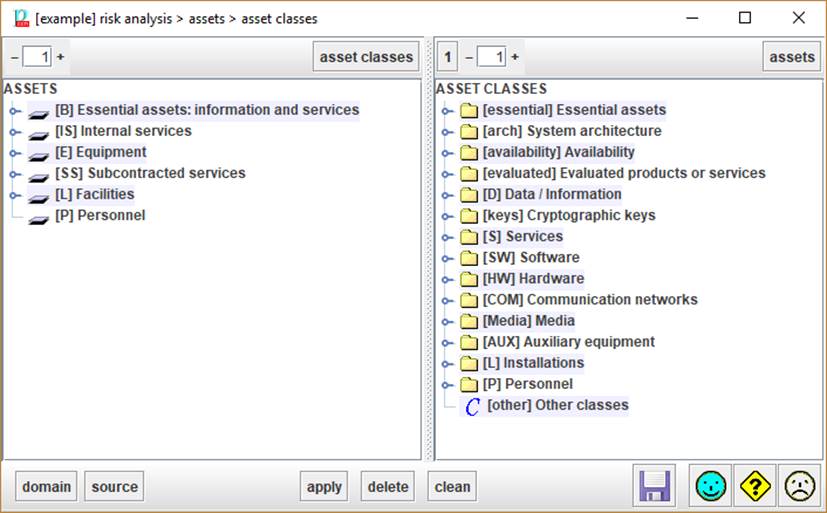

To associate classes to assets.

The left tree, organised by asset, shows the codes of the asset classes that are associated to each asset.



Top left

	Controls the level of expansion of the left tree (assets).
ASSET CLASSES	Select one or more assets on the left. Click ASSET CLASSES, and PILAR will select the associated classes on the right tree.



Top right

	Controls the level of expansion of the right tree (asset classes).
ASSETS	Select one or more asset classes on the right. Click ASSETS, and PILAR will select the associated assets on the left tree.



Bottom

domain	Select assets in left panel that belong to the given domain
source	Select assets in left panel associated to the selected source
apply	Select one or more assets on the left. Select one or more classes on the right. Click APPLY to associate.
delete	Select one or more assets on the left. Select one or more classes on the right. Click DELETE to dissociate.
clean	Select one or more assets on the left. Click CLEAN to dissociate from classes.



To associate a class to an asset

• select one or more assets (left panel)
• select one or more classes (right panel)
• click APPLY

To remove a class association

• select one or more assets (left panel)
• select one or more classes (right panel)
• click DELETE

or click DELETE key

To discover the classes associated to an asset

• select the asset (left panel)
• click ASSET CLASSES (left panel, top)

To discover the assets associated to a class

• select the class (right panel)
• click ASSETS (right panel, top)

To copy the associations of one asset to another

• select the source asset (left panel)
• click ASSET CLASSES (left panel, top)
• select the target asset (left panel)
• click APPLY
