Quick start

Select automatic threats in Options / Threats. PILAR applies non-optional threats from TSV.



Not so quick start

Select MIX threats in Options / Threats By default, PILAR treats all assets as automatic and applies non-optional threats from TSV. You may remove / add threats as convenient. As a help, right click on an asset to check whether there are optional threats on that asset. Apply as convenient.

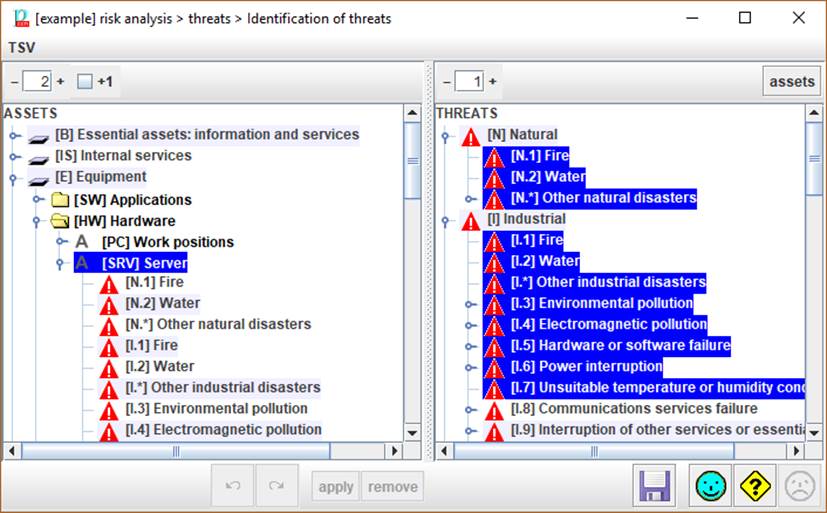

This screen lets us identify which threats are possible for each asset.

Please, note that if you are in automatic mode, some buttons are disabled:

·       copy and paste

·       XML import

·       apply and remove

·       undo / redo

Top menu TSV

TSV	See “Threat Standard Values



Top toolbar

	Spinner to control the expansion of the assets tree.
+1	Adjust the effect of the spinner. If +1 is checked, PILAR shows the threats associated to an asset. If unchecked, the threats are not expanded.
	Spinner to control the expansion of the threats tree.
assets	—    Select one or more threats in the right panel. —    Click ASSETS. PILAR selects on the left panel, the assets that are associated to the selected threats.



Bottom toolbar

	Undo last association of threats to assets
	Redo last undone association of threats to assets
apply	—    Select one or more assets in the left panel —    Select one or more threats in the right panel —    Click APPLY PILAR associates the selected threats to the selected assets
remove	—    Select one or more assets in the left panel —    Select one or more threats in the right panel —    Click REMOVE. PILAR dissociates the selected threats to the selected assets. Or —    Select one or more threats in the left panel —    Click REMOVE PILAR dissociates the selected threats from the associated assets.
	Saves current project either in a file, or in database (according to its source).



On assets (left panel)

·       Right click > CURRENT

·       to select current threats on the right panel

·       Right click > STANDARD

·       to select threats on the right panel (those in TSV, but optional ones)

·       Right click > OPTIONAL

·       to select threats on the right panel (those in TSV marked as optional)



Options / Threats are set to automatic.

Some buttons are disabled:

§  apply and remove

§  undo / redo

§  cancel and close

Options / Threats are set to manual.

§  Apply and remove buttons are enabled.

§  TSV is not applied by default

Options / Threats are set to mix.

§  Apply and remove buttons are enabled.

§  TSV is not applied by default



In manual mode and mix modes, you can associate threats to assets freely.

To assign TSV threats to an asset
(or a group, or a layer, or all of them)

·       select asset(s), group(s), layer(s), or top node

·       top menu TSV > apply

To assign a threat to an asset
(manual mode or mix mode and manual asset)

• select the asset on the left (one or more)
• select the threat on the right (one or more)
• click APPLY

To remove a threat from an asset
(manual mode or mix mode and manual asset)

• select the asset on the left (one or more)
• select the threat on the right (one or more)
• click REMOVE

or

• select the threat on the left (one or more)
• click on REMOVE

Which threats are associated to an asset?

• select the asset on the left
• right click > CURRENT

Which threats are associated to an asset as standard?

• select the asset on the left
• right click > STANDARD

Which threats are optionally associated to an asset?

• select the asset on the left
• right click > OPTIONAL

To "copy and paste" threats from an asset onto another
(manual mode or mix mode and manual asset)

• select the source asset on the left
• right click > CURRENT
• select the destination asset on the left (one or more)
• click APPLY

Which assets are subject to a threat?

• select the threat on the right (one or more)
• click ASSETS
